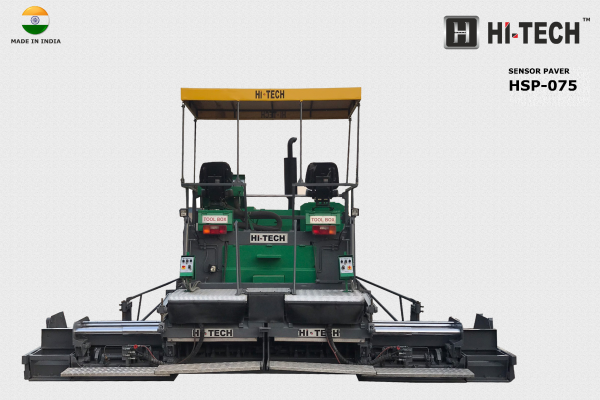

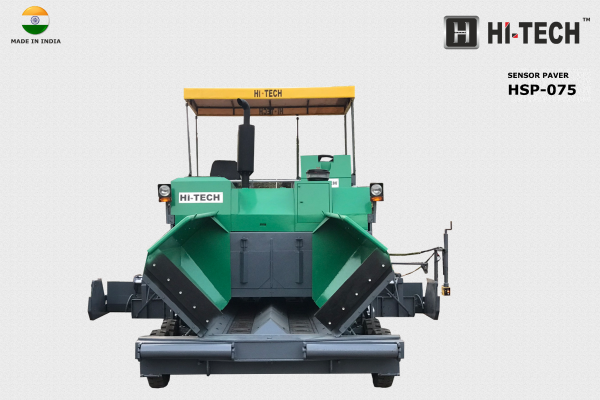

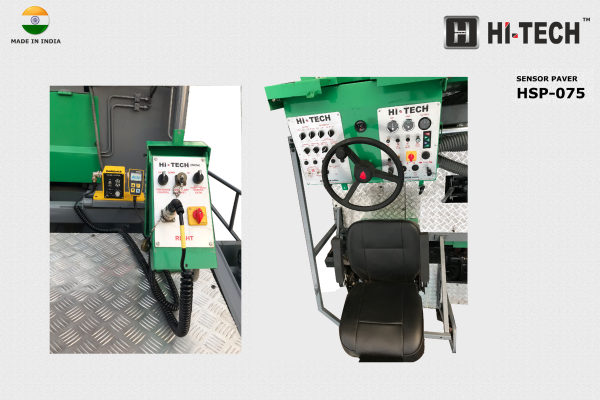

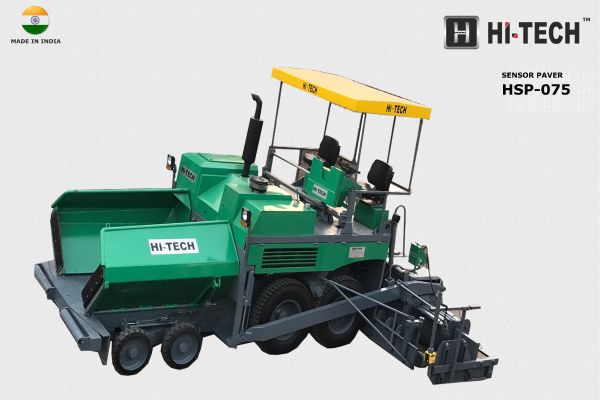

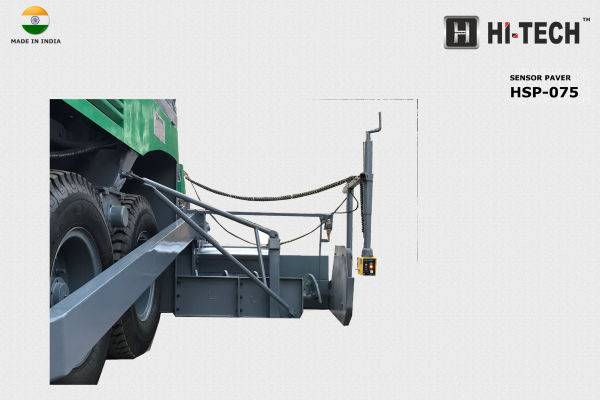

HSP-075 is a wheel mounted sensor paver finisher and it comes with hydrostatic transmission, hydraulic drive for conveyor, 4 nos. rear wheels on equalizer beam, MOBA make sliding type control panel, dual operator seats, MOBA (Germany) make Matic sensor device for automatic slope & grade control and Sonic Sensor system for automatic material flow control.
HSP-075 has basic screed width of 2.75 meters and it is hydraulically extendable up to 4.9 meters and it can be further extended through bolt on extension up to 7.5 meters. The screed has vibration, tamping and heating facility up to 7.5 meters
In HSP-075’s Equalizer Beam feature, the two pairs of wheels are connected with the chassis by means of a pivoted joint, which allows the wheel pair to oscillate independent of each other and the wheels do not loose contact with ground when the surface is uneven. The Equalizer Beam feature averages the unevenness of the ground and provides better finish while paving. It also distributes loads on all the wheels which provides better grip on the ground.
There are two optional features available for HSP-045
